Building the Steam Box

One of the great mysteries of wooden boats, for me, is wood. And I dont think Im alone. In fact, I think its one of the main attractions of modern boat building techniques, like glued lapstrake.

Glued lapstrake boats are built using plywood for planking, and laminated wood for structural parts like the stem, keel, etc. All held together by that boon to amateur boatbuilders: epoxy.

As expensive as marine plywood is, its not hard to find, and you dont really need to know that much about the wood inside the plywood. If you buy certified marine plywood, you can leave all the wood knowledge to the experts. They will choose the right type wood, grade it to ensure quality, and glue it up properly.

Plywood is not wood, so much as it is an industrial material. And that makes it reliable, consistent, and relatively easy to understand and work with. I would not have finished Cabin Boy so quickly without it.

On the other hand, wood -- real wood -- is complicated stuff. It comes in a dizzying number of species and subspecies, each with a slightly different set of properties. Someone once said there is such a variety of wood, that it is possible to find a wood with the perfect set of properties for any conceivable application.  Because of modern transportation systems, its possible to buy a much larger variety of wood that was ever available to our boatbuilding forefathers. Paradoxically, the old growth wood that our ancestors took for granted (and used in such profligate amounts), are for all intents and purposes, difficult or impossible to find.

Olde time boatbuilders in Maine, say, depended on a relative handful of woods that were inexpensive, easy to obtain, and locally grown. Builders got to know those woods intimately, first from their experienced teachers (i.e., the builder they apprenticed with), and then through long use. Their knowledge of wood wasnt wide, but it was deep. Uproot a Maine boatbuilder of the 1800s and move him to the Pacific Northwest, and hed have a whole lot of learning to do, before he was comfortable with the new set of trees he had to work with.

Amateur boatbuilders of today are in a triple pickle. Compared with the olde time boatbuilders, their experience is rarely wide or deep; many of the species recommended by classic boatbuilding texts are difficult to find; and its hard to know which of the many exotic species available in specialty lumber yards would be the best replacement.

To compound the problem, professional boat builders, who presumably do know a lot about wood, are as rare as old growth forests. Unless you live in one of the few communities where boatbuilding is still alive, you cant just walk down to your local boatshop and ask someone with 40 years experience.

No wonder so many boatbuilders throw up their hands and use plywood!

That isnt an option for my boomkin, though. I need to use a wood thats both super strong and easy to bend. Tom Gilmer specified hickory for the boomkin. When I first started asking around about hickory, I got conflicting advice.

The sales guy at the premier wood boutique in this neck of the woods told me flat out that hickory wasnt used on boats. Period.

Online, people told me that hickory was super strong, but probably wasnt very good for steam bending. At least, theyd never heard of it being used for bending. That got me thinking about cutting up my lumber into thinner strips, and laminating, but I really wanted to try steam bending, so couldnt give up without doing a bit of independent research.

So I was pleasantly surprised to read this in Howard Chapelles classic text, "Boatbuilding":


I was able to confirm hickorys bending qualities by consulting my new bible, the US Department of Agricultures "Wood Handbook". This thick tome is packed full of technical details that you can trust. The problem is finding or understanding what you need to know, but Im making slow progress.

So, I guess old Tom Gilmer knew what he was doing when he specified hickory.

Anyway, my steam bending plans are back on, and Im proceeding ahead at full speed. First up, build a steam box!

Like all steam box builders, it seems, I wanted to spend as little money as possible on mine, yet end up with a box that could be used for many future projects. Cheap pine is a good material, because its... well, cheap, and also because pine doesnt bend much when steamed. You wouldnt want to build your steam box out of hickory, for example.

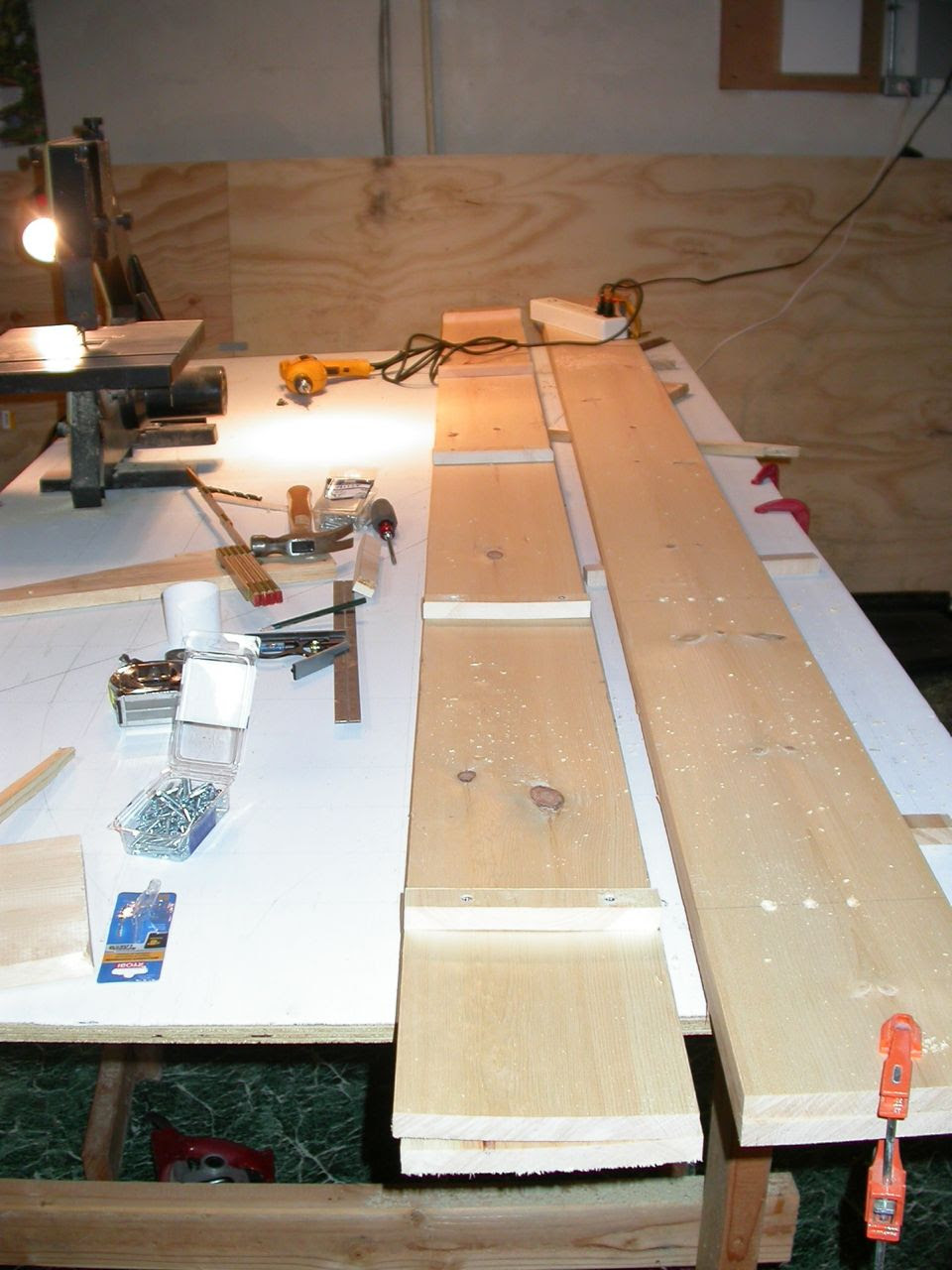

I wanted to be able to stack wood on several levels, inside the box, so I drilled holes in the side for three sets of removable pegs, and added cleats on the bottom, to keep wood elevated off the bottom of the box.

Holes drilled in the sides for removable pegs, cleats on the bottom.

I also wanted a door that was easy to open and close. Ive been fooling around with basic joinery, lately, and have recently built a homemade router plane. So it seemed like a good idea to use dado joints for both the closed (non-opening) end of the box, as well as for a sliding door on the opening end.

Cutting the sides of the dado with a saw

I only know how to do this with hand tools, so Im sure theres an easier faster way to make these joints.

I did it by cutting the sides of the dado with a handsaw (above), and then chiseling most of the waste out of the dado with a chisel.

Then I used my router plane to finish the dado. This is not a very good picture, but underneath the plane is a narrow, L shaped blade that essentially scrapes the bottom of the dado smooth.

The blade is made out of a hex wrench that I ground into a blade and sharpened. It took a bit of work to do this on my hand-turned grinding wheel, but there was no risk of loosing the temper in the steel. It works like a charm!

Home made router plane and stopped dado. Knots just make the job more fun!

The oak for the plane came out of that scrap piece of oak that I picked up at the Mystic boatshow (free!) this summer. Same piece that has produced a number of oak cleats and blocks. Ill be sorry when Ive used up the last bit of it.

At any rate, with a bit of care and elbow grease, you end up with a pretty nice dado.

End board dadoed into bottom board.

Skipping ahead a few steps, this is what the box looks like with the pegs installed, and everything held together by clamps, for a trial assembly. Obviously, the top is not installed.

Trial assembly, looking at opening end

This is the opening end. And this is how easy it will be to open.

Ta-da!

And this is what it will look like, more or less, with the top on.

With top on

But before I can screw the whole thing together, I must install some sort of fitting in the bottom, so that I can easily attach the steam hose. I plan to use a radiator hose.

So next time, well look at the plumbing that goes into my steam box.

Cant wait to fire it up and get some hands on experience with steaming wood.

>>> Next Episode: Steambox Boiler
